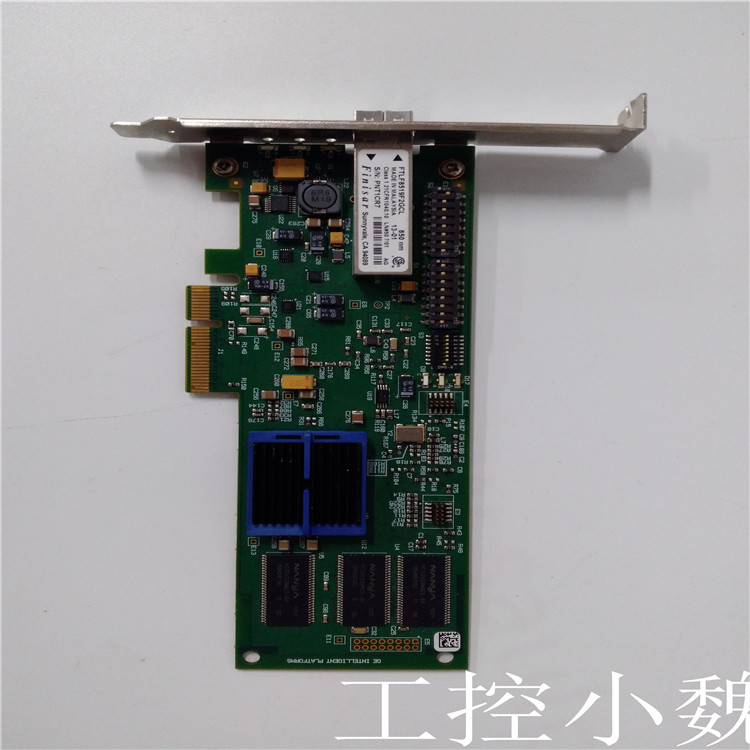

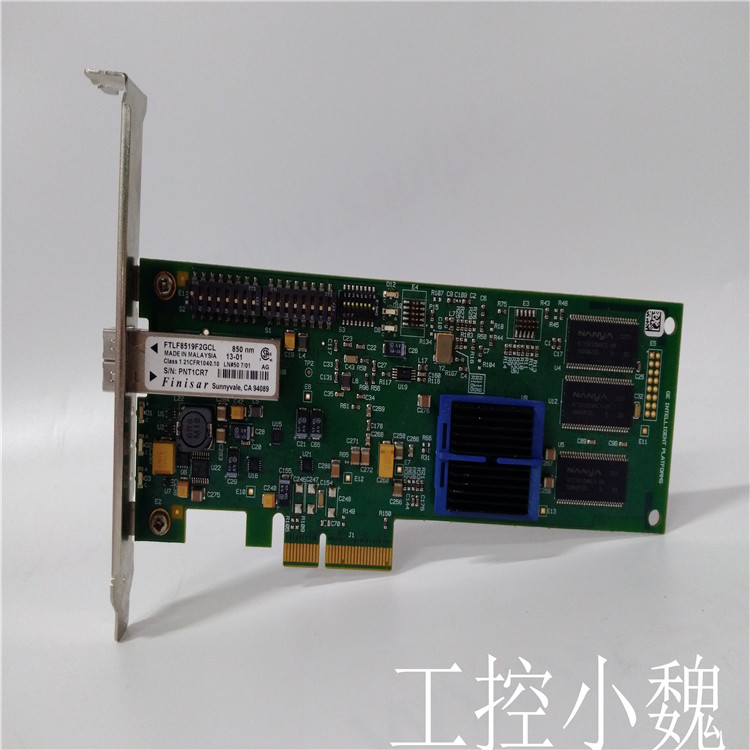

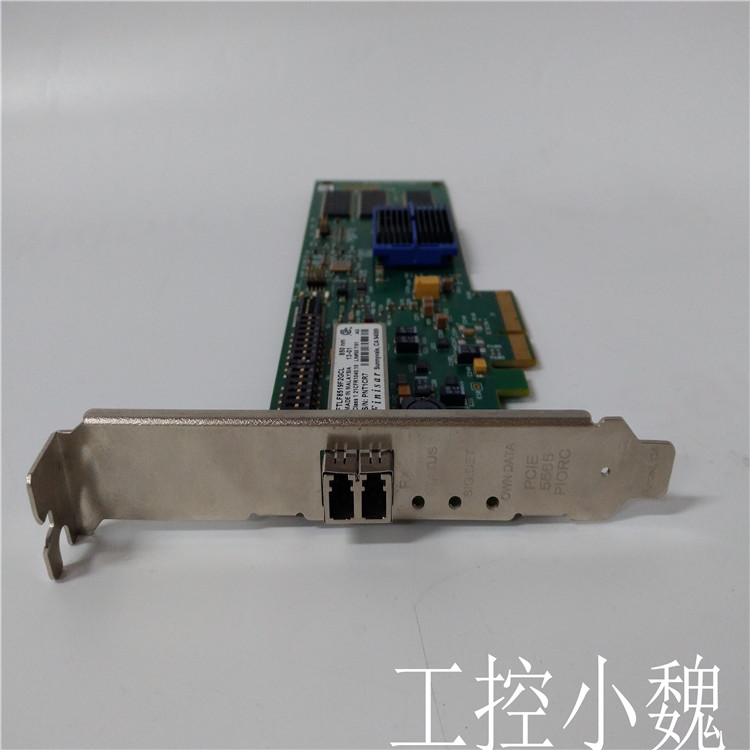

PCIE-5565PIORC-200A00

PMC-5565PIORC 反射式内存节点卡提供高速、低延迟、确定性接口，允许在高达 170 Mbyte/s 的速率下在多达 256 个独立系统（节点）之间共享数据。每个反射内存板都可以配置 128 MB 或 256 MB 的板载 SDRAM。本地 SDRAM 提供对存储数据的快速读取访问时间。写入存储在本地 SDRAM 中，并通过高速光纤数据路径广播到其他反射存储器节点。节点之间的数据传输是软件透明的，因此不需要 I/O 开销。在峰值数据速率期间发送和接收 FIFO 缓冲数据，以优化主机和总线性能以保持高数据吞吐量。PMC-5565PIORC 符合 RoHS 标准，并具有改进的 PIO 读取性能和可在现场升级的固件。

动态数据包大小，4 到 64 字节数据
多模光纤0长300m，单模光纤0长10km
多达 256 个节点
写入一个节点内存的数据也会写入网络上所有节点的内存
高速、易于使用的光纤网络（串行 2.12 Gbaud）
传输速率 43 Mbyte/s（4 字节数据包）至 170 Mbyte/s（64 字节数据包）128 MB 或 256 MB SDRAM 反射内存
一个独立的DMA通道
网络上的任何节点都可以使用单个命令在网络上的任何其他节点或所有网络节点中生成中断
错误检测
用于额外错误抑制的冗余传输模式
无处理器开销
没有处理器参与网络的运行
必须与 PMC/PMI 载体 (Abaco P/N 2BARCCBD1) 结合使用，以替代 PCI-5565PIORCThe PMC-5565PIORC reflective memory node card provides a high-speed, low latency, deterministic interface that allows data sharing between up to 256 independent systems (nodes) at a rate of up to 170 Mbyte/s. Each reflective memory board can be configured with 128 MB or 256 MB on-board SDRAM. Local SDRAM provides fast read access time to stored data. Writes are stored in the local SDRAM and broadcast to other reflective memory nodes through high-speed optical fiber data paths. Data transmission between nodes is software transparent, so there is no I/O overhead. Transmit and receive FIFO buffered data during peak data rates to optimize host and bus performance to maintain high data throughput. PMC-5565PIORC conforms to RoHS standard, and has improved PIO reading performance and firmware that can be upgraded in the field.



Dynamic packet size, 4 to 64 bytes of data

The maximum length of multimode optical fiber is 300m, and the maximum length of single-mode optical fiber is 10km

Up to 256 nodes

Data written to the memory of one node will also be written to the memory of all nodes on the network

High speed, easy-to-use optical network (serial 2.12 Gbaud)

Transmission rate 43 Mbyte/s (4-byte packets) to 170 Mbyte/s (64 byte packets)PCI Reflective Memory with PIO read performance
As a longstanding leader in Reflective Memory (RFM) technology, J-Squared understands the demands of real-time networks. We know that certain types of applications require the determinism, implementation simplicity, and lack of software overhead that ubiquitous technologies such as Ethernet can’t deliver.

Our PCI-5565PIORC Reflective Memory node card in PCI form factor is engineered specifically to provide highly deterministic, tightly timed performance for a variety of advanced networking applications that need to deterministically move large amounts of data fast and share that data in real time among similar or disparate network nodes.

J-Squared’s RFM products are designed to fit into your existing hardware and operating system environment, integrating diverse hardware platforms running different operating systems into a single, shared memory network.

The PCI-5565PIORC is well-suited for industrial control applications in which implementation simplicity, a lack of software overhead, and bus structure and operating system independence are key factors, such as:
Aircraft simulators
Automated testing systems
Ship and submarine simulators
Aluminum rolling mill
Power plant simulators
Engine test stands
Industrial process control
High-speed data acquisition
PLCs
Features
High speed, easy to use fiber-optic network (2.12 Gbaud serially)
Data written to memory in one node is also written to memory in all nodes on the network
Up to 256 nodes
Connection with multimode fiber up to 300 m, single mode fiber up to 10 km
Dynamic packet size, 4 to 64 bytes of data
Transfer rate 43 MB/s (4 byte packets) to 174 MB/s (64 byte packets)
64 MB or 128 MB SDRAM Reflective Memory
Two independent DMA channels
Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
Error detection
Redundant transfer mode for extra error suppression
No processor overhead
No processor involvement in the operation of the network
PCI 64-bit 66 MHz transfers, 3.3 or 5V, single width mezzanine interface
Please call for Windows Drivers (available Windows 7/XP/Vista/Server 2008/Server 2003, 32/64-bit for PCIE/PCI/PMC)

PCI-5565PIORC-110000
PCI-5565PIORC-111000
PCI-5565PIORC-210000
PCI-5565PIORC-211000
PCI-5565PIORC-110000
PCI-5565PIORC-210000
PCIE-5565PIORC-100A00
PCIE-5565PIORC-200A00
PMC-5565PIORC-110000
PMC-5565PIORC-210000
CPCI-5565PIORC-110000
CPCI-5565PIORC-210000
