Description

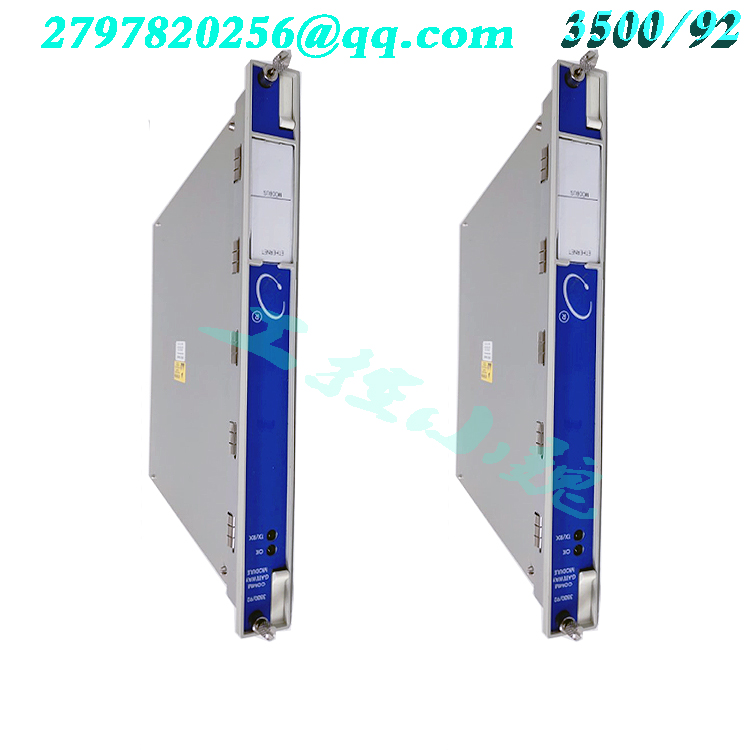

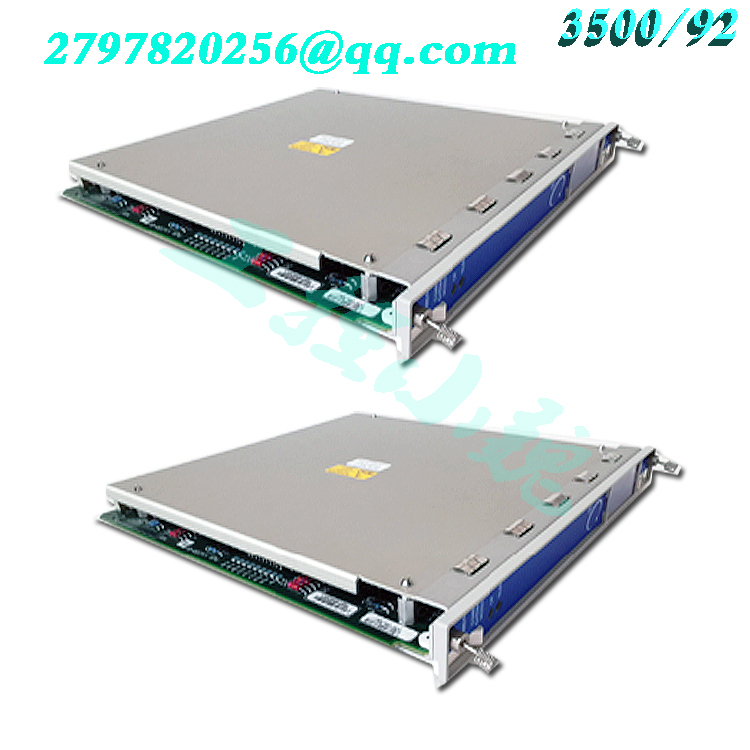

The 3500/92 Communication Gateway module providesextensive communication capabilities of all rack monitoredvalues and statuses for integration with process control andother automation systems using both Ethernet TCP/IP andserial (RS232/RS422/RS485)communications capabilities. Italso permits Ethernet communications with 3500 RackConfiguration Software and Data Acquisition Software.supported protocols include:Modicon Modbus protocol (via serialcommunications)Modbus/TCP protocol (a variant of serial Modbus usedfor TCP/IP Ethernet communications )Proprietary Bently Nevada protocol (forcommunication with 3500 Rack Configuration andData Acquisition Software packages)The Ethernet connection to the 3500/92 is an RJ45connection for 10BASE-T star configuration Ethernetnetworks.The 3500/92 supports the communication interfaces,
communication protocols, and other features from theoriginal 3500/90 with the exception of the primary valueModbus registers. The 3500/92 now has a ConfigurableModbus Register Utility, which can provide the samefunctionality originally addressed by the primary valueModbus registers.

描述

3500/92通信网关模块使用以太网TCP/IP和串行（RS232/RS422/RS485）通信功能提供所有机架监控值和状态的扩展通信功能，以便与过程控制和其他自动化系统集成。它还允许与3500机架组态软件和数据采集软件进行以太网通信。支持的协议包括：Modicon Modbus协议（通过串行通信）Modbus/TCP协议（用于TCP/IP以太网通信的串行Modbus的变体）专有Bently Nevada协议（用于与3500机架配置和数据采集程序包通信）3500/92的以太网连接是10BASE-T星形配置以太网的RJ45连接。3500/92支持通信接口，

通信协议和其他功能

原始3500/90，主要值除外

Modbus寄存器。3500/92现在具有可配置

Modbus寄存器实用程序，可提供相同功能

初由主值处理的功能

Modbus寄存器。
Product Description
The GE Drive Control Board DS200SDCCG1ACA is the primary controller for the drive. The GE Drive Control Board DS200SDCCG1ACA is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time. For optional functionality, you can add auxiliary boards to the GE Drive Control Board DS200SDCCG1ACA. The optional cards are attached to the board and connectors are available to connect cables from the optional cards to the board.

The cards provide the ability to connect to a  local area network (LAN), and process multibridge signals, or process signals that are transmitted from the board or received by the board. If you install the optional cards and you replace the GE Drive Control Board DS200SDCCG1ACA, you must follow some additional steps to perform the replacement. First, once the defective board is removed from the drive, place the board on the protective bag, after the bag is flattened, on a level surface. Next, remove the optional cards from the board and disconnect any cables. Before you install the replacement board, place the board on the protective bag and install the optional cards and attach any cables. Then, proceed with the installation of the replacement board.

The GE Drive Control Board DS200SDCCG1ACA features ten LED lights that work together to provide the status of the board. The LEDs are situated in a row and when the board is operating without fault, two LEDs at a time flash in sequence to indicate that the board is operating properly.
